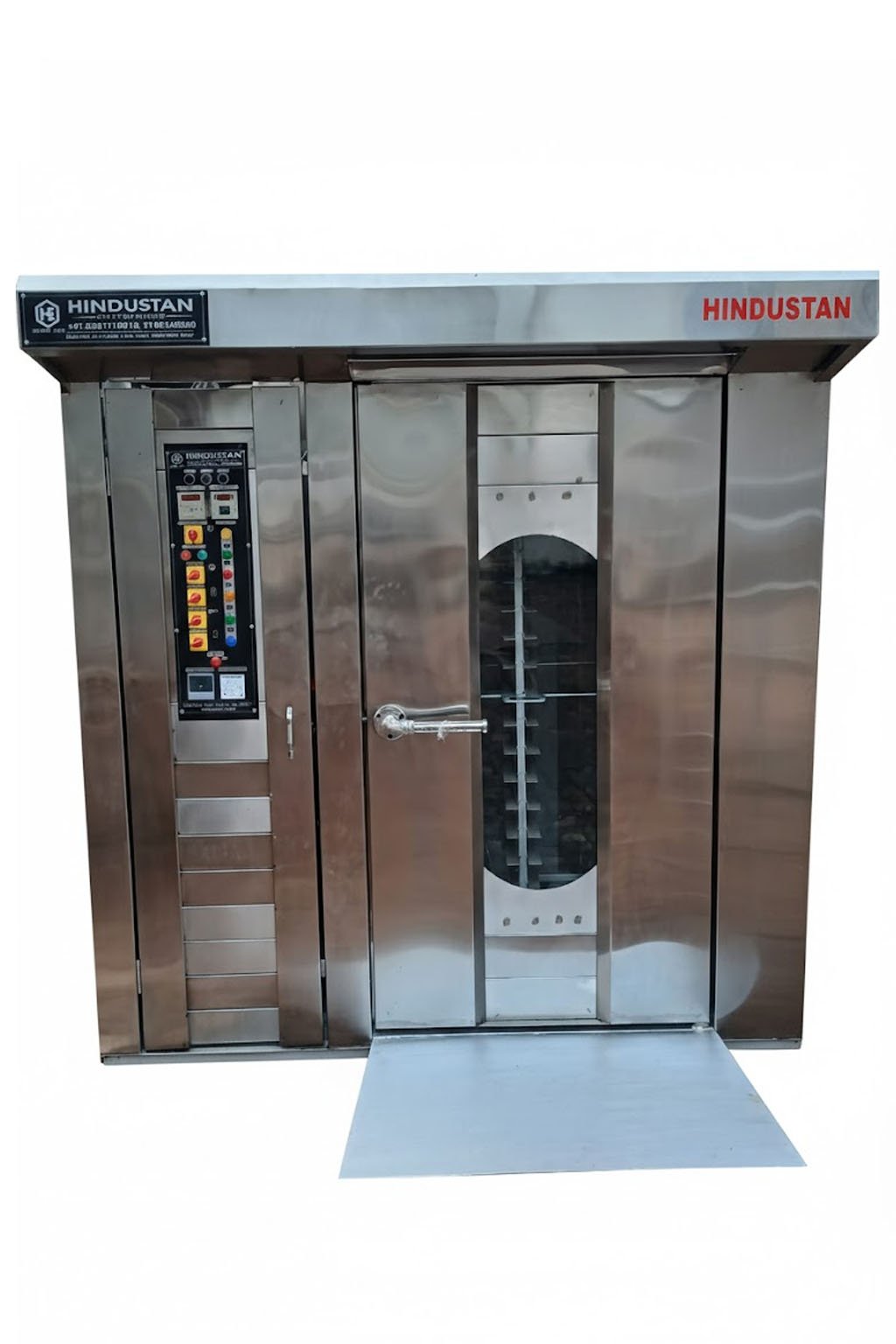

| Rotary Rack Oven 72 Tray Deluxe Model X10 (Indian) – Specification | |
|---|---|
| Machine Type | |
| Machine Name | Rotary Rack Oven |
| Capacity | 72 Tray |
| Model | Deluxe Model X10 (Indian) |
| Application | Bread / Rusk / Biscuit / Cookies / Cake Baking |
| Tray Details | |
| Tray Quantity | 72 Nos. |
| Tray Size (Standard) | 16” × 24” |
| Optional Tray Size | 13” × 18” |
| Heating System | |
| Heating Type | Diesel / Gas (LPG / PNG) / Optional Electric |
| Heat Source | Indirect Heating (Uniform Baking) |
| Burner | Heavy Duty Indian Burner |
| Fuel Consumption (Diesel) | Approx. 3.5 Litre / Hour (Load Dependent) |
| Fuel Consumption (Gas) | Approx. 4 – 7 Kg / Hour (Load Dependent) |
| Air Circulation System | |
| Air Flow | Forced Hot Air Circulation |
| Blower Fan | Heavy Duty Blower Fan |
| Baking Uniformity | 100% Uniform Baking System |
| Control Panel | |
| Operation | Semi Automatic / Automatic (Optional) |
| Temperature Control | Digital PID Controller |
| Timer | Digital Timer |
| Safety | Overheat Protection, Emergency Stop |
| Temperature | |
| Working Temperature | 50°C – 300°C (Approx.) |
| Preheating | Fast Preheat System |
| Body & Insulation | |
| Outer Body | MS Powder Coated / Optional SS |
| Inner Chamber | SS 304 / Aluminium Sheet (Variant Wise) |
| Insulation | Glass Wool / Ceramic Wool (High Insulation) |
| Door | Heavy Duty Insulated Door with Locking System |
| Rack & Rotation System | |
| Rack Type | Rotary Rack Trolley |
| Rotation | Automatic Rotary System |
| Rack Material | SS / MS (As per Selection) |
| Wheels | Heavy Duty Wheel Trolley |
| Electrical | |
| Power Supply | 3 Phase, 415V, 50Hz |
| Connected Load | 2 HP – 5 HP (Model Wise) |
| Motors | Blower Motor + Rack Rotation Motor |
| Steam System (Optional) | |
| Steam System | Available (Best for Bread Baking) |
| Steam Injection | Manual / Automatic (Optional) |
| Approx. Machine Size & Weight | |
| Machine Size | Approx. 8 ft × 7 ft × 9 ft (Variant Wise) |
| Weight | Approx. 900 – 1500 Kg (Variant Wise) |
| Standard Accessories | |
| Included Items |
1 Rotary Oven Machine, 1 Rack Trolley (72 Tray), Control Panel, Burner Set / Gas Train, Blower Assembly |
